Zortrax M200 Plus

Basically reliable 3D printer

Ready for rapid manufacturing

The M200 Plus 3D printer is designed for reliable, continuous operation over long periods of time. Industrial-grade build quality minimizes maintenance costs and guarantees repeatable, dimensionally accurate results.

Material end detection

3D printing is paused
when the material runs out.

Advanced cooling system

Cooling system guarantees
the highest efficiency.

Built-in camera

3D printing process can be monitored remotely.

Wide range of filaments

Wide range of dedicated and third-party filaments is supported.

User-friendly design

Zortrax M200 Plus is a Plug & Play 3D printer, ready to work right out of the box. It can be controlled manually via an intuitive touchscreen or remotely over Wi-Fi or Ethernet network.

Previews of digital models loaded into its expandable memory are displayed on the screen to make selecting the right model easier. The interface is constantly improved with new functionalities added with firmware updates.

Even 3x faster printing!

Zortrax M200 Plus can speed up printing thanks to the Speed Mode feature available in a free firmware update. Print speed can be adjusted during the ongoing printing process without having to hit the pause button.

Zortrax Speed Mode is a great option in batch production, rapid prototyping, as well as projects where models undergo further post-processing.

Discover more

Applications

3D printing has been invented as a rapid prototyping technology but today it can do a whole lot more.
Zortrax FDM 3D printers work in various industries ranging from education through health care to aerospace.

Prototyping consumer products

Making consumer products takes a lot of prototyping. Zortrax M200 Plus 3D printer can make this process faster and more affordable.

Architecture modeling

Architectural scale models require millimeter precision to get the proportions right. Zortrax M200 3D printer can automate this process.

3D printed educational props

Custom made educational props are useful in anatomy courses. Zortrax M200 Plus can 3D print them at a cost well below the market price.

Large scale manufacturing

Large production plants can save up to 99% on spare parts by 3D printing them on the spot. 3D printing farms can handle it with ease.

Medical models

3D printed models can be based on CT scans. Such models are useful in facial reconstruction and planning of surgeries among others.

Aerospace engineering

NASA uses Zortrax 3D printers to prototype tools for astrounauts working onboard the International Space Station.

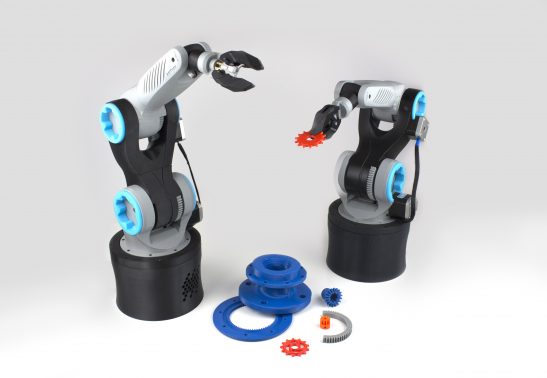

Making robotics easier

Building successful robots is a challenging task. With Zortrax M200 3D printer iterating through different designs becomes easy.

Automotive research and development

Modeling in clay is a usual way to make early stage concepts in the automotive industry. Former Ferrari engineers found 3D prinitng faster and more efficient.

Based on the Zortrax M200 award-winning design.

Build your 3D printing farm

With Zortrax M200 Plus connected, your computer becomes the command center of smart, reliable manufacturing. Wi-Fi module installed in Zortrax M200 Plus offers a fitting alternative for the file transfer between computer and the 3D printer.

Connect

With the M200 Plus, your computer becomes a hub of flexible manufacturing. Networking of multiple 3D printers is fast and simple.

Manage

Manage all your 3D printers easily from a screen of your computer. Divide work between the devices to finish it quickly.

Check

Rely on the smart functionalities like material end detection, upgraded extruder, build platform and camera for the risk-free 3D printing.

Specification for Zortrax M200 Plus

Device

Build volume
200 x 200 x 180 mm (7.9 x 7.9 x 7.1 in)
Material container
Spool
Material diameter
1.75 mm (0.069 in)
Nozzle diameter
0.3 mm (0.012 in), 0.4 mm (0.016 in), 0.6 mm (0.024 in)
Support
Mechanically removed - printed with the same material as the model
Extruder
Single (compatible with demanding materials like TPU or nylon)
Extruder cooling system
Radial fan cooling the extruder block; two fans cooling the print
Hotend
Single, V3
Platform
Heated; perforated and glass are applicable
Material endstop
Mechanical
Connectivity
Wi-Fi, Ethernet, USB
Operating system
Android
Touchscreen
4" IPS 800x480
Camera
Yes
External materials
Applicable

Software

Software bundle
Z-SUITE
Supported file types
.stl, .obj, .dxf, .3mf, .ply
Supported operating system
Mac OS Catalina and newer versions / Windows 10 and newer versions

In the box

3D Printer, Hotend V3, Side Covers, Z-SUITE, Starter Kit, Z-ULTRAT, Spool holder, USB memory stick

Printing

Technology
LPD (Layer Plastic Deposition) – depositing melted material layer by layer onto the build platform
Layer resolution
90-390 microns (for 0.4 mm nozzle)
Minimal wall thickness
450 microns (for 0.4 mm nozzle)
Platform levelling
Automatic or manual measurement of platform points’ height

Temperature

Maximum printing temperature (extruder)
290° C (554° F)
Maximum platform temperature
105° C (221° F)
Ambient operation temperature
20-30° C (68-86° F)
Storage temperature
0-35° C (32-95° F)

Electrical

AC Input
110 V ~ 5.9 A 50/60 Hz; 240 V ~ 2.5 A 50/60 Hz
Maximum power consumption
320 W

Filaments

Available Filaments
BASF Ultrafuse® ABS, Nanovia PC-ABS V0, Z-ABS, Z-ABS 2, Z-ASA Pro, Z-ESD, Z-FLEX, Z-GLASS, Z-HIPS, Z-NYLON, Z-PCABS, Z-PETG, Z-PLA, Z-PLA Pro, Z-ULTRAT
External materials
Applicable
Support
Mechanically removed – printed with the same material as the model
Filament container
Spool
Filament diameter
1.75 mm (0.069 in)

Zortrax M200 Plus Main Features

  • 200 x 200 x 180 mm workspace
  • Wi-Fi, USB, and Ethernet connectivity
  • Failsafe response feature
  • Compatible with glass or perforated build platforms
  • Filament endstop mechanism
  • Zortrax Speed Mode feature included
  • Compatible with materials from world-leading brands (BASF, Nanovia)
  • Made in EU
  • Worldwide warranty
  • Fully free Z-SUITE software
