Zortrax M300 Dual

Smart and efficient
large-volume 3D printing

Watch Product Demo

The LPD Plus technology designed for BIG industrial-grade results

With dual-extrusion technology, the model and water-soluble support structures are built simultaneously. Printing movable and intricate designs is possible, as all support structures will dissolve in water.

Functional power tool handle. With dissolvable support structures.

Model without dissolvable support structures.

Human lumbar vertebrae. With dissolvable support structures.

Model without dissolvable support structures.

Fishing reel. With dissolvable support structures.

Model without dissolvable support structures.

Intricate piping connector. With dissolvable support structures.

Model without dissolvable support structures.

Gear mechanism. With dissolvable support structures.

Model without dissolvable support structures.

Print as you want

Various types of build platforms and a wide range of third-party filaments are fully supported. Not being limited to a single supplier allows choosing the setup perfectly tailored to the task at hand.

Minimizing human error

The M300 Dual is an efficient time-saving device fitted with advanced sensors to oversee the 3D printing process from start to finish with almost no supervision required.

No more failed prints

The printer can reduce time lost due to power outages and various kinds of mechanical failures. In such cases the print is automatically paused and can be resumed right after the issue has been dealt with.

Industrial-quality results from
desktop 3D printer

Large workspace

Its large workspace measuring 265x265x300 mm is sufficient to print big models in one go.

Dual-extrusion system

The LPD Plus technology works with two nozzles and a double hot-end.

Blackout response system

The M300 Dual can detect a power outage and resume the printing from the same spot when the power is back on.

Capacitive sensor

The CDS allows automatic calibration of the printer regardless of the type of build-platform installed.

Advanced filament control

The M300 Dual automatically pauses the print when the filament's jammed, run out, or when the nozzle got clogged.

External materials support

Third-party filaments available on spools are fully supported in both single and dual extrusion modes.

Large format models made with
a desktop-sized 3D printer

Step 1 Design

You can design models in all types of CAD software that support exporting files to .stl and .obj format or simply download them from the many online libraries.

Step 2 Print

Z-SUITE can send an already pre-processed model to one or more of your printers over Wi-Fi or Ethernet network.

Step 3 Remove supports

Water-soluble support filaments can be easily removed by rinsing. A dedicated Z-SUPPORT Premium dissolves quickly and leaves no remnants on the model.

Step 4 Go forward

Once the supports are removed, the model can work as a functional prototype or an end-use part in various industries.

Scaling up to 3D printing farms

The Zortrax M300 Dual's wireless connectivity enables you to build a large cluster of remotely controlled 3D printers. Besides Wi-Fi, multiple M300 Dual 3D printers can also be networked through Ethernet or USB ports.

Connect

3D printing networks can be made by connecting multiple printers into large manufacturing clusters.

Manage

Z-SUITE is an efficient 3D printing farm management tool. 3D printers can be chosen to divide the workload between the devices.

Check

Monitor the 3D printing process using cameras installed inside each one of the printers.

Main features of Z-SUITE 2
for dual-extrusion technology

Z-SUITE is a dedicated slicing application that also works as a wireless command center of smart, reliable Zortrax 3D printers with Wi-Fi capability. It has a variety of functionalities enhancing the experience of using Zortrax M300 Dual.

Raft-free 3D printing

Z-SUITE 2 supports raft-free 3D printing. A glass build platform is recommended for this option.

Rotation optimization tool

The model's position on the build-platform can be optimized to reduce support or printing time.

Replication

Models can be easily replicated to fit multiple parts of the same design on the build platform.

Thin wall detection

Z-SUITE 2 highlights the walls too thin to be printed properly to prevent failed prints.

Specification for Zortrax M300 Dual

Device

Build volume
265 x 265 x 300 mm (10.4 x 10.4 x 11.8 in)
Nozzle diameter
0.4 mm (0.016 in) - standard, 0.6 mm (0.024 in)
Extruder
Dual, printing with model and support material
Extruder cooling system
Two fans cooling the extruder; radial fan cooling the print
Hotend
Dual
Platform
Heated; various platforms are applicable (e.g. perforated or glass)
Material Endstop
2 x Mechanical
Connectivity
Wi-Fi, Ethernet, USB
Operating system
Android
Processor
Quad Core
Touchscreen
4" IPS 800x480
Camera
Yes

Electrical

AC input
110 V ~ 5.9 A 50/60 Hz ; 240 V ~ 2.5 A 50/60 Hz
Maximum power consumption
400 W

Software

Software bundle
Z-SUITE
Supported file types
.stl, .obj, .dxf, .3mf, .ply
Supported operating systems
Mac OS Mojave* / Windows 7 and newer versions

In the box

3D Printer, Side Covers, Z-SUITE, Starter Kit, Z-PETG, Z-SUPPORT Premium, 1x Perforated Platform, 1x Glass Platform, 2x Spool holders, Material Box, USB memory stick

Printing

Technology
LPD Plus (Layer Plastic Deposition Plus) – advanced technology with the system of Dissolvable Support Structures
Layer resolution
150-200 microns (for 0.4 mm nozzle)
Minimal wall thickness
450 microns (for 0.4 mm nozzle)
Platform leveling
Automatic measurement of platform points' height / manual measurement of platform points' height

Temperature

Maximum printing temperature (extruder)
310° C (590° F)
Maximum platform temperature
105° C (221° F)
Ambient operation temperature
20-30° C (68-86° F)
Storage temperature
0-35° C (32-95° F)

Filaments

Dedicated for single extrusion
Z-ABS, Z-ASA Pro, Z-FLEX, Z-GLASS, Z-HIPS, Z-NYLON, Z-PETG, Z-PLA, Z-PLA Pro, Z-ULTRAT, Z-ULTRAT Plus
Dedicated for dual extrusion
Z-ABS, Z-ASA Pro, Z-ESD, Z-GLASS, Z-PETG, Z-PLA, Z-PLA Pro, Z-ULTRAT, Z-ULTRAT PLUS, Z-SUPPORT Premium, Z-SUPPORT ATP
External filaments
Applicable
Support
Mechanically removed - printed with the same material as the model / Soluble – printed with a different material than the model
Filament container
Spool
Filament diameter
1.75 mm (0.069 in)
*Since the release of macOS Big Sur, we’ve been developing Z-SUITE’s best possible operation on this system and all its future updates. The available version is fully functional, however minor bugs may occur.

Zortrax M300 Dual Main Features

  • Works in the LPD Plus dual-extrusion technology
  • Has a 265x265x300 mm workspace
  • Has Wi-Fi, USB, and Ethernet connectivity
  • Has a blackout response system
  • Calibrates a build-platform with a capacitive displacement sensor
  • Compatible with various build platforms
  • Supports single and dual extrusion modes
  • Works with third-party filaments
Order Now Download Zortrax Product Catalog

Products that complement your 3D printer

Automated post-processing device

Learn More

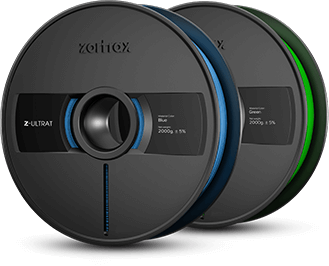

Dedicated filaments
